    LMHJ-1500 H Beam Welder 200 - 600mm Flange Horizontal Welding Machine Horizontal Welding Machine

    Ask Lasest Price
    Model Number : LMHJ-1500
    Brand Name : Friendship Machinery
    Certification : CE, ISO
    Price : Customized
    Delivery Time : 20 To 30 Working Days
    Payment Terms : T/T, L/C
    Supply Ability : 5-30 Sets Per Month
    • Product Details
    • Company Profile

    LMHJ-1500 H Beam Welder 200 - 600mm Flange Horizontal Welding Machine Horizontal Welding Machine

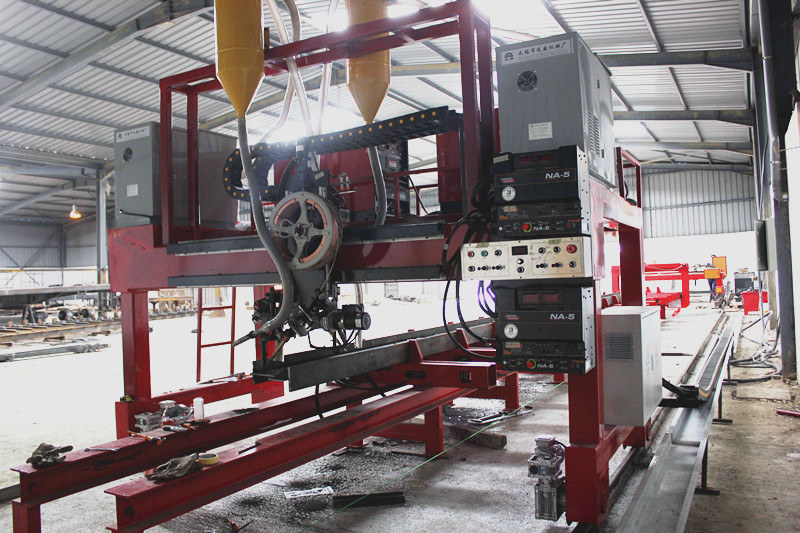

    LMHJ-1500 Horizontal type h beam welding machine


    1. Introduction

    ● Gantry type H beam welding machine is designed for horizontal welding 2 seams, specially welding trailer beam less than 20°, it is the best solutions for semi-trailer production line.

    ● Main machine is adopt advanced frequency control technology, it is improved welding quality during the working processing.

    ● It adopts mechanical tracking technology to avoid repair welding for trailer beam, with a beautiful seam, high quality and the most importance is save cost.

    ● Single arc single wire welding to avoid burn out beam when welding thin plate.

    ● H beam assistant clamp worktable is used to fix and clamp the h beam by hydraulic system, the h beam should be manual assembled in advance, after that put it on the clamp worktable, hydraulic system will driven the arms at both sides to fix and clamp the h beam then start full seam welding jobs.


    2. Technical parameters

    No.ItemSpecification
    1Width of the web200-1500mm
    2Thickness of the web6-32mm
    3Height of the flange200-600mm
    4Thickness of the flange6-40mm
    5Effective welding length14000mm
    6Welding speed1000-2000mm/min
    7Welding waySinge arc single wire or single arc twin wire
    8Welding wire diameter4.0mm
    9Submerged arc welderHuayuan MZ1000 or Lincoln DC1000
    10Tracking wayMechanical automatic tracking
